 GENERAL
CHARACTERISTICS
Ihe MTS and ABS cutting-off machines, designed for cutting sections
in aluminium and plastic materials have the following characteristics:
- Robust steel construction which ensures reliability and silent
operation.
- Rotating plate graduated to 90º right and left with fixed
positions at 0º, 30º, 45º, 90º
- Hermetic sealing of rotating plate to ensure that no foreign
bodies nor coolant enter the rolling track.
- The main clamp slides over the table guided by horizontal columns
to ensure its parallelism a maintained and to increases the machine's
cutting capacity.
- Transparent hood with total work visibility.
- Pneumatic vertical and horizontal clamps.
- Pneumatic installation with maintenance unit.
- Electric panel with 24V transformer for the 10w voltage operations
panel.
- Machine equipped and marked to guarantee safe operation, in
compliance with EC standards.
MTS-350/N OPTION.
This model has all of the general and technical characteristics
of the MTS-350.
Manual operation of cutting disc, by means of a lever.
Ihe vertical and horizontal clamps are pneumatic, the cycle is automatic
and rapid.
MTS-350/A OPTION.
Totally automatic version, with all of the general and technical
characteristics of the MTS-350/N model.

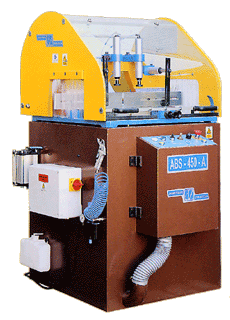

ABS-450/A OPTION.
Totally automatic machine, with all of the general and technical
characteristics indicated.
TECHNICAL CHARACTERISTICS
| |
MTS-350/NyA |
ABS-4501A. |
| Three phase
motor 220/380V |
2
CV. |
3
CV. |
| Tangential disc speed |
60 m/seg. |
60 m/seg. |
| Maximum
disc diameter |
350
mm. |
450
mm. |
| Cutting capacity at 90º |
ø125 mm. |
ø170 mm. |
| |
220x80 mm. |
300x120 mm. |
| Cutting capacity at 45º |
ø 120 mm.
|
ø160 mm. |
| |
105 mm |
140 mm. |
| |
160x80mm. |
200x120mm. |
| Main measurements |
660x660x1320
mm |
750x750x1400
mm |
| Measurements with packaging |
850x850x1400 mm |
950x950x1500 mm |
| Net weight |
243
kg. |
307
kg. |
| Gross weight |
291 kg. |
368 kg. |
|
